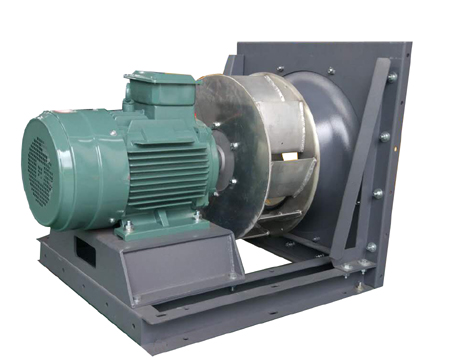

XTPN 鋁合金機翼型無蝸殼風機
XTPN 鋁合金機翼型無蝸殼風機
XTPN Aluminum Alloy Airfoil Plenum Fan
工作范圍 Scope of work
結構特點：后傾鋁合金機翼型葉輪 Stuctural features : Tilt Aluminum Alloy Airfoil.
葉輪直徑：31-140 cm Wheel diameter : 31-140 cm
風量范圍：1700-161400m3/h Air colume range : 1700-161400 m3/h
最大壓力： 2480 Pa Maximum pressure : 2480 Pa
最高溫度：120 ℃ Maximum temperature : 120 ℃
傳動方式：電機直聯、皮帶 Driving mode : motor drive,belt
應用領域：無蝸売風機設計用于現場制造或車間制造的空氣處理機組內部。此風機葉輪對其所在的空氣處理機組內部空間加壓，這樣風管可以從各方向聯連到這個空氣處理機組上。無蝸殼風機省去了蝸殼，傳動,擴散器在空氣處理機組內部會占用的大量空間。無蝸殼風機已經在空調產業中取得了廣泛的應用。
Applications : No volute fan is designed to be used in the air treatment unit of field manufacturing or workshop manufacturing. The impeller of the fan pressurizes the internal space of the air handling unit where it is located, so that the air duct can be connected to
the air handling unit from all directions. The non-volute fan saves a lot of space for volute, transmission and diffuser in the air handling unit. No volute fan has been widely used in air conditioning industry.
